B82422H1683K100 | TDK (EPCOS)
Choke, SMD 1210, 68 µH, 110 mA, B82422H1683K100
Order No.: 46D1510
EAN: 4099889001471
MPN:
B82422H1683K100
Not suitable for new designs
Unit Price (€ / pc.)
0.2975 € *
Standard delivery time from the manufacturer is: 6 Weeks

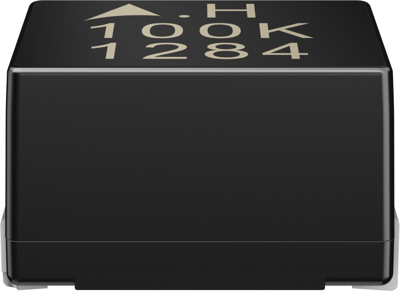

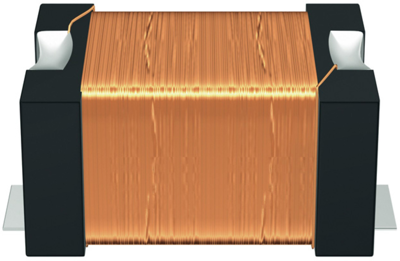

SMD choke, B82422H1683K100, EPCOS
Features
- Temperature range up to +150 °C
- Very high current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Switch-mode power supplies
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 68 µH | |
| Length | 3.2 mm | |
| Design | SMD 1210 | |
| DC resistance | 7.7 Ω | |
| Tolerance | ±10 % | |
| DC current | 110 mA | |
| Width | 2.5 mm | |
| Measuring frequency | 100 kHz | |
| Quality Q | Q 15 | |
| Height | 2.2 mm | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
