B82422H1153K000 | TDK (EPCOS)

Choke, SMD 1210, 15 µH, 390 mA, B82422H1153K000

Order No.: 76D9114
EAN: 4099889045352
MPN:
B82422H1153K000
B82422H1153K
Series: SIMID 1210-H

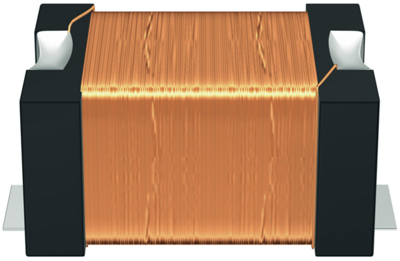

B82422H1153K000 TDK (EPCOS) Fixed Inductors Image 1

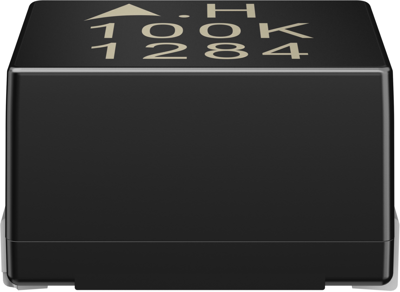

B82422H1153K000 TDK (EPCOS) Fixed Inductors Image 2
B82422H1153K000 TDK (EPCOS) Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4641 €
50 pcs.
0.4046 €
250 pcs.
0.3570 €
1000 pcs.
0.3332 €
2000 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD choke, B82422H1153K000, EPCOS

Features

  • Temperature range up to +150 °C
  • Very high current handling capability
  • Suitable for lead-free reflow soldering
  • RoHS-compatible

Applications

  • Filtering of supply voltages, coupling, decoupling
  • DC/DC converters
  • Switch-mode power supplies
  • Automotive electronics
Technical specifications
Version SMD choke
Inductance 15 µH
DC current 390 mA
Tolerance ±10 %
DC resistance 720 mΩ
Saturation current 480 mA
Measuring frequency 2.52 MHz
Quality Q Q 12
Design SMD 1210
Length 3.2 mm
Width 2.5 mm
Height 2.2 mm
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Bulk with 2,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
