B82422H1153J000 | TDK (EPCOS)
Choke, SMD 1210, 15 µH, 390 mA, B82422H1153J000
Order No.: 74D6651
EAN: 4099889018677
MPN:
B82422H1153J000
B82422H1153J
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 7 Weeks

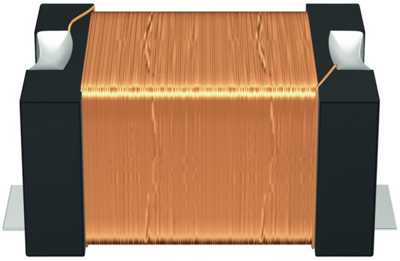

SMD choke, B82422H1153J000, EPCOS
Features
- Temperature range up to +150 °C
- Very high current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Switch-mode power supplies
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD choke | |
| Inductance | 15 µH | |
| DC current | 390 mA | |
| Tolerance | ±5 % | |
| DC resistance | 720 mΩ | |
| Saturation current | 480 mA | |
| Measuring frequency | 2.52 MHz | |
| Quality Q | Q 12 | |
| Design | SMD 1210 | |
| Length | 3.2 mm | |
| Width | 2.5 mm | |
| Height | 2.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
