B82422A1473K100 | TDK (EPCOS)
Choke, SMD 1210, 47 µH, 85 mA, B82422A1473K100
Unit Price (€ / pc.)
0.4879 € *
Available: 7 pcs.
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
50 pcs.
0.3927 €
250 pcs.
0.3332 €
1000 pcs.
0.2856 €
2500 pcs.
0.2511 €
*incl. VAT plus shipping costs
Subject to prior sale

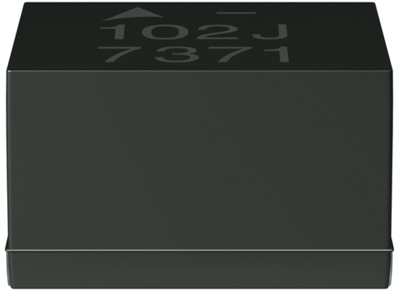

SMD choke, B82422A1473K100, EPCOS
Features
- Temperature range up to +145 °C
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Telecommunications
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 27 | |
| Height | 2 mm | |
| Design | SMD 1210 | |
| Inductance | 47 µH | |
| Tolerance | ±10 % | |

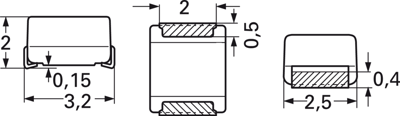

| Length | 3.2 mm | |
| Width | 2.5 mm | |
| Measuring frequency | 100 kHz | |
| Version | SMD choke | |
| DC resistance | 7 Ω | |
| DC current | 85 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
