B82422A1103K100 | TDK (EPCOS)

Choke, SMD 1210, 10 µH, 180 mA, B82422A1103K100

Order No.: 76D892
EAN: 4099889045239
MPN:
B82422A1103K100
Series: SIMID 1210

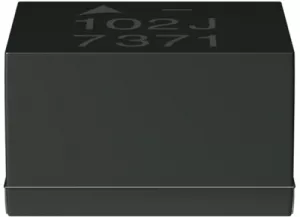

B82422A1103K100 TDK (EPCOS) Fixed Inductors Image 1
B82422A1103K100 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.3784 € *
Available: 5,040 pcs.
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3784 €
10 pcs.
0.3035 €
100 pcs.
0.2428 €
500 pcs.
0.2225 €
1000 pcs.
0.1773 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD choke, B82422A1103K100, EPCOS

Features

  • Temperature range up to +145 °C
  • High resonance frequency
  • Suitable for lead-free reflow soldering
  • RoHS-compatible

Applications

  • Filtering of supply voltages, coupling, decoupling
  • Antenna systems
  • Telecommunications
  • Automotive electronics
Technical specifications
Filter Property Value
Inductance 10 µH
DC current 180 mA
DC resistance 1.6 Ω
Design SMD 1210
Version SMD choke
Quality Q Q 27
Width 2.5 mm
Height 2 mm
Tolerance ±10 %
Measuring frequency 1 MHz
Length 3.2 mm
Logistics
Property Value
Country of origin HU
Original Packaging Reel with 2,000 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
