B82145A1104J000 | TDK (EPCOS)

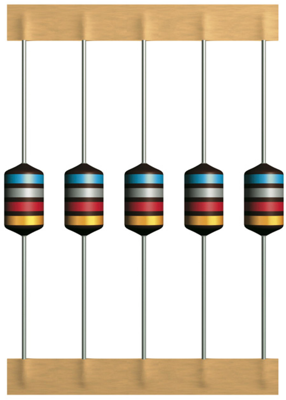

RF choke, axial, 100 µH, 860 mA, B82145A1104J000
Order No.: 74D6536
EAN: 4099889017564
MPN:
B82145A1104J000
B82145A1104J
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 6 Weeks
RF inductor, B82145A1104J000, EPCOS
Features
- High rated current at high inductance ratings
- Suitable for wave soldering
- RoHS-compatible
Applications
- Decoupling
- Interference suppression
- For energy-saving lamps and entertainment electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 100 µH | |
| Saturation current | 860 mA | |
| DC current | 860 mA | |
| Quality Q | Q 50 | |
| Length | 12 mm | |
| Design | axial | |
| DC resistance | 700 mΩ | |
| Version | RF choke | |
| Tolerance | ±5 % | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
