B82144B1102K000 | TDK (EPCOS)

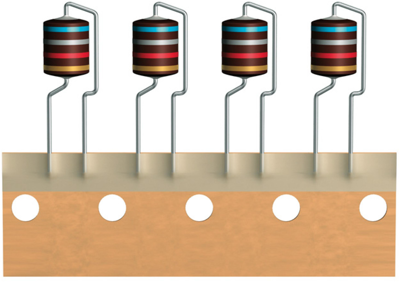

RF choke, radial, 1 µH, 2.5 A, B82144B1102K000
Order No.: 74D6413
EAN: 4099889016482
MPN:
B82144B1102K000
B82144B1102K
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 6 Weeks
RF inductor, B82144B1102K000, EPCOS
Features
- Wide inductance range
- Suitable for wave soldering
- High rated current
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- For electronic household appliances
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1 µH | |
| DC current | 2.5 A | |
| Quality Q | Q 25 | |
| Length | 9.2 mm | |
| Design | radial | |
| DC resistance | 60 mΩ | |
| Version | RF choke | |
| Tolerance | ±10 % | |
| Measuring frequency | 10 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
