B82141A1224J000 | TDK (EPCOS)

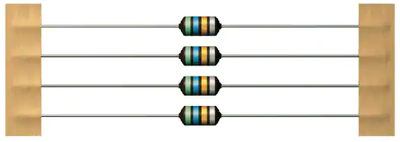

RF choke, axial, 220 µH, 130 mA, B82141A1224J000
Unit Price (€ / pc.)
0.3570 € *
Available: 18 pcs.
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.2559 €
100 pcs.
0.2190 €
500 pcs.
0.1904 €
1000 pcs.
0.1725 €
10000 pcs.
0.1547 €
*incl. VAT plus shipping costs
Subject to prior sale
RF choke, B82141A1224J000, EPCOS
Features
- Small size
- Relatively high rated current
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- For electronic household appliances, automotive and entertainment electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 130 mA | |
| DC resistance | 5.8 Ω | |
| Quality Q | Q 60 | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±5 % | |
| Length | 6.8 mm | |
| Inductance | 220 µH | |
| Design | axial | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Bulk with 5,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
