B82141A1105J000 | TDK (EPCOS)

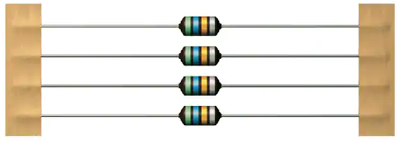

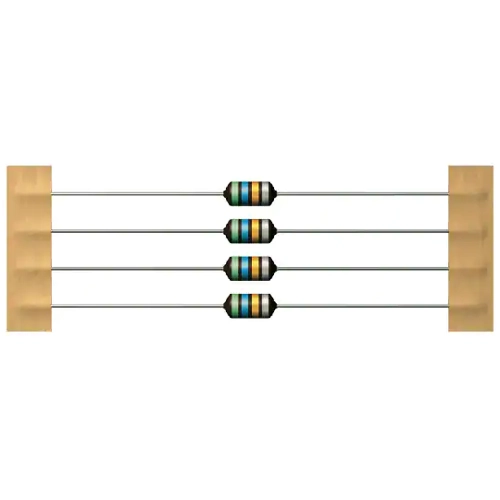

RF choke, axial, 1 mH, 55 mA, B82141A1105J000

Order No.: 74D5422
EAN: 4099889013320
MPN:
B82141A1105J000
B82141A1105J
Series: B82141A
B82141A1105J000 TDK (EPCOS) Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
618.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.3094 €

RF choke, B82141A1105J000, EPCOS

Features

  • Small size
  • Relatively high rated current
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • RF blocking and filtering
  • Decoupling and interference suppression
  • For electronic household appliances, automotive and entertainment electronics
Technical specifications
Filter Property Value
Version RF choke
DC resistance 33 Ω
Measuring frequency 796 kHz
Length 6.8 mm
Inductance 1 mH
Tolerance ±5 %
Design axial
Quality Q Q 60
DC current 55 mA
Logistics
Property Value
Customs tariff number 85045000
Country of origin HU
Original Packaging Bulk with 5,000 pieces
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
