B82116S1221L026 | TDK (EPCOS)

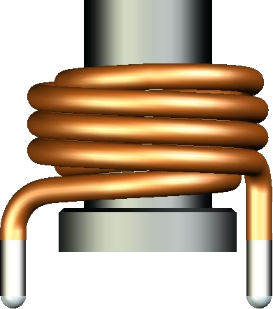

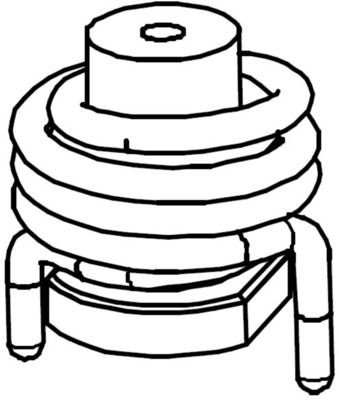

Power line choke, radial, 3.1 µH, 25 A, B82116S1221L026
Order No.: 53D4761
EAN: 4099889001501
MPN:
B82116S1221L026
B82116S1221L 26
No longer available from manufacturer
Unit Price (€ / pc.)
5.8548 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power line choke, B82116S1221L026, EPCOS
Features
- Suitable for wave soldering
- Ferrite core
- Double layer winding
- RoHS-compatible
Applications
- EMC choke
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 3.1 µH | |
| Length | 24 mm | |
| Design | radial | |
| DC resistance | 1.8 mΩ | |
| Tolerance | ±20 % | |
| DC current | 25 A | |
| Width | 21.5 mm | |
| Measuring frequency | 10 kHz | |
| Height | 26 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 280 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
