B82111E0000C026 | TDK (EPCOS)

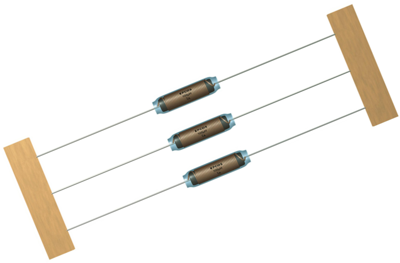

RF choke, axial, 220 µH, 500 mA, B82111E0000C026
Unit Price (€ / pc.)
2.0230 € *
Available: 1,425 pcs.
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.2614 €
50 pcs.
1.1067 €
250 pcs.
0.9639 €
1000 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale
Fixed inductor, B82111E0000C026, EPCOS
Features
- High resonance frequency
- Wide inductance range
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Interference suppression in small appliances
- Decoupling in telecommunications and entertainment electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 500 mA | |
| DC resistance | 2.6 Ω | |
| Saturation current | 500 mA | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |

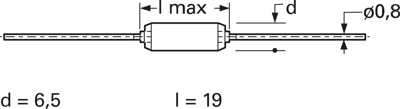

| Length | 26 mm | |
| Inductance | 220 µH | |
| Design | axial | |
| Version | RF choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
