B78148S1473J009 | TDK (EPCOS)
RF choke, radial, 47 µH, 450 mA, B78148S1473J009
Order No.: 74D6179
EAN: 4099889015157
MPN:
B78148S1473J009
B78148S1473J9
Unit Price (€ / pc.)
0.2083 € *
Standard delivery time from the manufacturer is: 6 Weeks
RF inductor, B78148S1473J009, EPCOS
Features
- Wide inductance range
- Suitable for general-purpose application
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- Automotive electronics
- Antenna systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 450 mA | |
| Tolerance | ±5 % | |
| Design | radial | |
| Quality Q | Q 45 | |
| Inductance | 47 µH | |
| Version | RF choke | |
| Length | 9.2 mm | |
| DC resistance | 1.1 Ω | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |

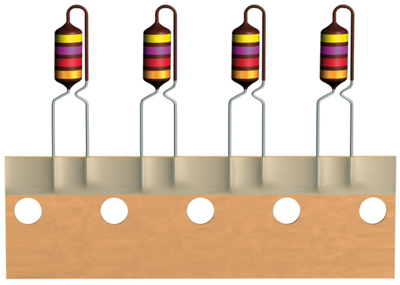

| Original Packaging | Ammopack with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
