B78148S1333J000 | TDK (EPCOS)

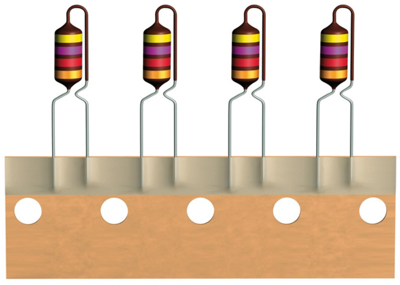

RF choke, radial, 33 µH, 500 mA, B78148S1333J000
Order No.: 74D6164
EAN: 4099889015003
MPN:
B78148S1333J000
B78148S1333J
Unit Price (€ / pc.)
0.2083 € *
Standard delivery time from the manufacturer is: 6 Weeks
RF inductor, B78148S1333J000, EPCOS
Features
- Wide inductance range
- Suitable for general-purpose application
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- Automotive electronics
- Antenna systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 55 | |
| DC current | 500 mA | |
| Length | 9.2 mm | |
| DC resistance | 920 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | RF choke | |
| Design | radial | |
| Tolerance | ±5 % | |
| Inductance | 33 µH |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
