B78148S1332J000 | TDK (EPCOS)

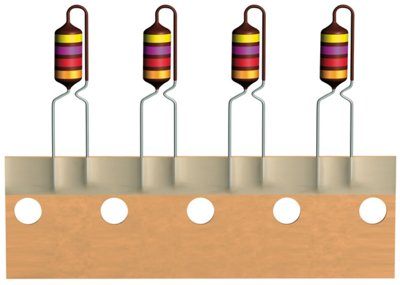

RF choke, radial, 3.3 µH, 900 mA, B78148S1332J000
Order No.: 74D6163
EAN: 4099889014990
MPN:
B78148S1332J000
B78148S1332J
Unit Price (€ / pc.)
0.2083 € *
Standard delivery time from the manufacturer is: 1,000 Weeks
RF inductor, B78148S1332J000, EPCOS
Features
- Wide inductance range
- Suitable for general-purpose application
- Suitable for wave soldering
- RoHS-compatible
Applications
- RF blocking and filtering
- Decoupling and interference suppression
- Automotive electronics
- Antenna systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RF choke | |
| Inductance | 3.3 µH | |
| DC current | 900 mA | |
| Tolerance | ±5 % | |
| DC resistance | 290 mΩ | |
| Measuring frequency | 1 MHz | |
| Quality Q | Q 60 | |
| Design | radial | |
| Length | 9.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 2,000 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
