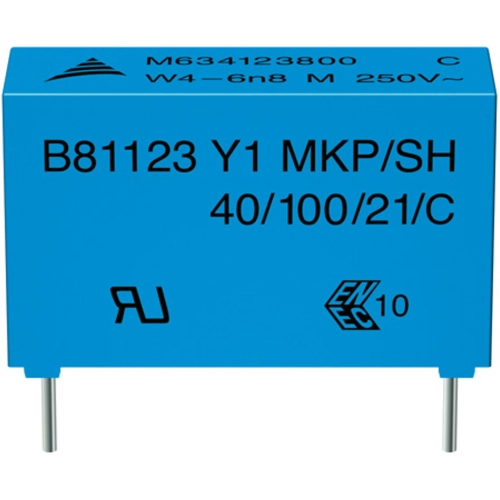

B81123C1562M000 | TDK (EPCOS)
MKP suppression capacitor, 5.6 nF, ±20 %, 500 V (AC), PP, 22.5 mm, B81123C1562M000
Order No.: 74D6261
EAN: 4099879863492
MPN:
B81123C1562M000
B81123C1562M
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 10 Weeks
Film capacitor, B81123C1562M000, EPCOS
EMI suppression capacitor (MKP)
Features
- Self-healing properties
- RoHS-compatible
Applications
- Y1 class for interference suppression
- Line to ground
- Double insulation
Technical specifications
| Dielectric material | PP | |
| Capacity | 5.6 nF | |
| Grid | 22.5 mm | |
| Width | 7 mm | |
| Height | 16 mm | |
| Length | 26.5 mm | |
| Rated voltage (AC) | 500 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 110 °C | |
| Number of pins | 2 | |
| Interference suppression class | Y1 |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 630 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
