B81123C1152M289 | TDK (EPCOS)

Name: MKP suppression capacitor, 1.5 nF, ±20 %, 500 V (AC), PP, 15 mm, B81123C1152M289
Brand: TDK (EPCOS)
SKU: 74D6247
Availability: InStock

MKP suppression capacitor, 1.5 nF, ±20 %, 500 V (AC), PP, 15 mm, B81123C1152M289

Order No.: 74D6247

EAN: 4099879863355

MPN:

B81123C1152M289

Image may differ

Key Specification:

Capacity 1.5 nF

Rated voltage (AC) 500 V

Tolerance ±20 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3808 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,462.27 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

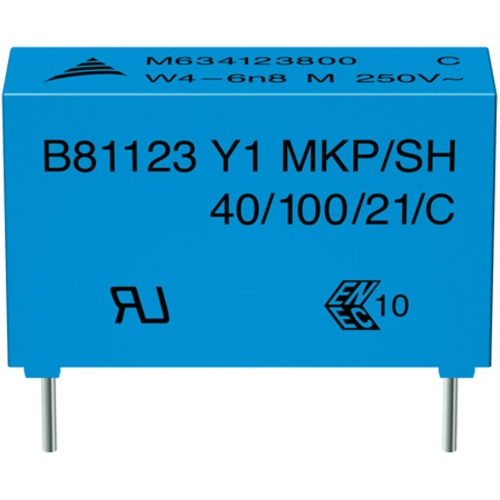

Film capacitor, B81123C1152M289, EPCOS

EMI suppression capacitor (MKP)

Features

Self-healing properties
RoHS-compatible

Applications

Y1 class for interference suppression
Line to ground
Double insulation

Technical specifications

Filter	Property	Value
	Width	6 mm
	Rated voltage (AC)	500 V
	Number of pins	2
	Length	18 mm
	Design	radial
	Dielectric material	PP
	max. operating temperature	110 °C
	Interference suppression class	Y1
	min. operating temperature	-40 °C
	Height	11 mm
	Capacity	1.5 nF
	Tolerance	±20 %
	Grid	15 mm
