B81123C1102M003 | TDK (EPCOS)

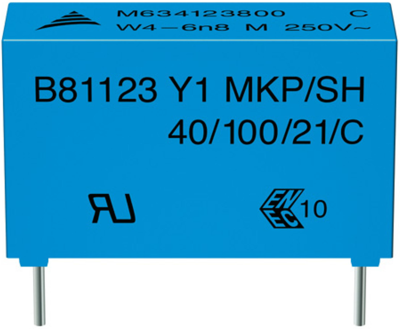

MKP suppression capacitor, 1 nF, ±20 %, 500 V (AC), PP, 15 mm, B81123C1102M003
Order No.: 74D6238
EAN: 4099879863263
MPN:
B81123C1102M003
B81123C1102M3
Unit Price (€ / pc.)
0.3070 € *
Standard delivery time from the manufacturer is: 10 Weeks
Film capacitor, B81123C1102M003, EPCOS
EMI suppression capacitor (MKP)
Features
- Self-healing properties
- RoHS-compatible
Applications
- Y1 class for interference suppression
- Line to ground
- Double insulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 5 mm | |
| Number of pins | 2 | |
| Tolerance | ±20 % | |
| Capacity | 1 nF | |
| Grid | 15 mm | |
| Rated voltage (AC) | 500 V | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Design | radial | |
| Interference suppression class | Y1 | |
| Height | 10.5 mm | |
| Length | 18 mm | |
| Dielectric material | PP |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
