B33331B6405J080 | TDK (EPCOS)
Motor operating capacitor, 4 µF, ±5 %, 450 V (AC), PP, B33331B6405J080
Unit Price (€ / pc.)
7.7945 € *
Available: 9 pcs.
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
10 pcs.
6.8663 €
128 pcs.
6.0214 €
256 pcs.
5.7953 €
1024 pcs.
5.4145 €
*incl. VAT plus shipping costs
Subject to prior sale

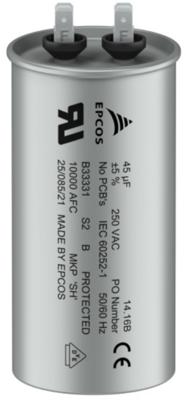

Motor run capacitor, B33331B6405J080, EPCOS
Features
- Self-healing properties
- Low dissipation factor
- Overpressure disconnection safety device
- S2 safety
- High insulation resistance
Applications
- For general sine wave application, mainly as motor run
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 450 V | |
| Tolerance | ±5 % | |
| Capacity | 4 µF | |
| Dielectric material | PP | |
| Height | 55 mm | |
| min. operating temperature | -40 °C | |
| Design | can |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 64 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
