B32934B3155M000 | TDK (EPCOS)

Name: MKT suppression capacitor, 1.5 µF, ±20 %, 305 V (AC), PET, 27.5 mm, B32934B3155M000
Brand: TDK (EPCOS)
SKU: 70D6934
Availability: InStock

MKT suppression capacitor, 1.5 µF, ±20 %, 305 V (AC), PET, 27.5 mm, B32934B3155M000

Order No.: 70D6934

EAN: 4099879862990

MPN:

B32934B3155M000

B32934B3155M

Image may differ

Key Specification:

Capacity 1.5 µF

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.1658 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

2,252.43 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

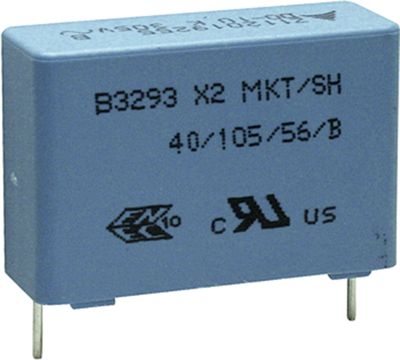

Film capacitor, B32934B3155M000, EPCOS

EMI suppression capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

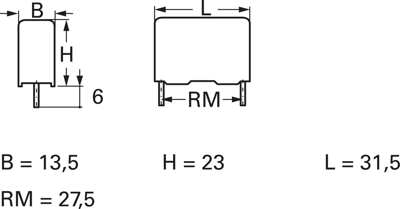

Technical specifications

Filter	Property	Value
	Width	13.5 mm
	Rated voltage (AC)	305 V
	Number of pins	2
	Length	31.5 mm
	Design	radial
	Dielectric material	PET
	max. operating temperature	105 °C
	Interference suppression class	X2
	min. operating temperature	-40 °C
	Height	23 mm
	Capacity	1.5 µF
	Tolerance	±20 %
	Grid	27.5 mm
