B32934B3105K026 | TDK (EPCOS)

Name: MKT suppression capacitor, 1 µF, ±10 %, 305 V (AC), PET, 27.5 mm, B32934B3105K026
Brand: TDK (EPCOS)
SKU: 45D5938
Availability: InStock

MKT suppression capacitor, 1 µF, ±10 %, 305 V (AC), PET, 27.5 mm, B32934B3105K026

Order No.: 45D5938

EAN: 4099879853318

MPN:

B32934B3105K026

B32934B3105K26

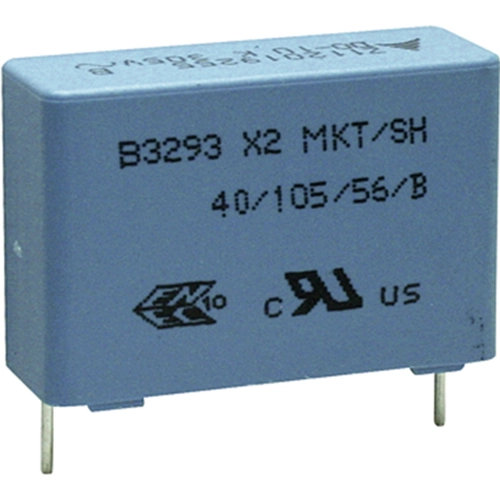

Image may differ

Key Specification:

Capacity 1 µF

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.7731 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,418.48 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32934B3105K026, EPCOS

Metallized polyester film capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

Technical specifications

Filter	Property	Value
	Width	11 mm
	Rated voltage (AC)	305 V
	Number of pins	2
	Length	31.5 mm
	Design	radial
	Dielectric material	PET
	max. operating temperature	105 °C
	Interference suppression class	X2
	min. operating temperature	-40 °C
	Height	21 mm
	Capacity	1 µF
	Tolerance	±10 %
	Grid	27.5 mm
