B32934A3684M000 | TDK (EPCOS)

Name: MKT suppression capacitor, 680 nF, ±20 %, 305 V (AC), PET, 27.5 mm, B32934A3684M000
Brand: TDK (EPCOS)
SKU: 70D6930
Availability: InStock

MKT suppression capacitor, 680 nF, ±20 %, 305 V (AC), PET, 27.5 mm, B32934A3684M000

Order No.: 70D6930

EAN: 4099879862983

MPN:

B32934A3684M000

B32934A3684M

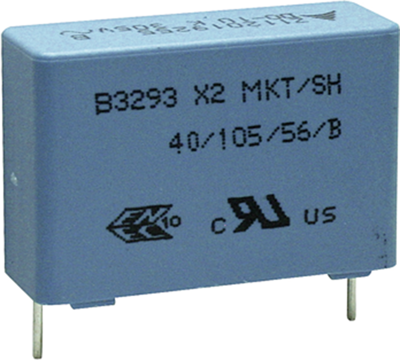

Image may differ

Key Specification:

Capacity 680 nF

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.3447 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,721.22 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32934A3684M000, EPCOS

EMI suppression capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

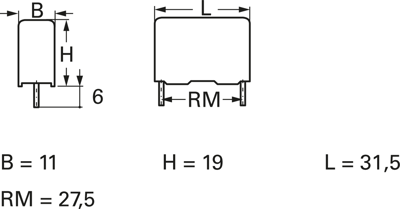

Technical specifications

Filter	Property	Value
	Grid	27.5 mm
	Height	19 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Rated voltage (AC)	305 V
	Tolerance	±20 %
	Width	11 mm
	Interference suppression class	X2
	Capacity	680 nF
	Design	radial
	Length	31.5 mm
	Number of pins	2
	Dielectric material	PET
