B32934A3564M000 | TDK (EPCOS)

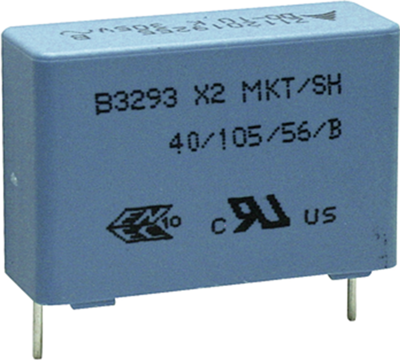

MKT suppression capacitor, 560 nF, ±20 %, 305 V (AC), PET, 27.5 mm, B32934A3564M000
Order No.: 45D5930
EAN: 4099879853233
MPN:
B32934A3564M000
B32934A3564M
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 7 Weeks
Film capacitor, B32934A3564M000, EPCOS
EMI suppression capacitor (MKT)
Features
- High stability of capacitance value
- X2 safety approval
- RoHS-compatible
Applications
- For connection in series with the mains
- For severe ambient conditions
- Capacitive power supply applications
- Energy meters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Capacity | 560 nF | |
| Grid | 27.5 mm | |
| Width | 11 mm | |
| Height | 19 mm | |
| Length | 31.5 mm | |
| Rated voltage (AC) | 305 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| Interference suppression class | X2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 320 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
