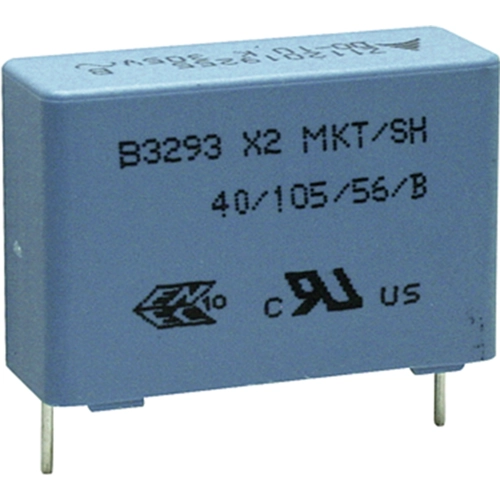

B32933A3824K026 | TDK (EPCOS)

Name: MKT suppression capacitor, 820 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3824K026
Brand: TDK (EPCOS)
SKU: 45D5913
Availability: InStock

MKT suppression capacitor, 820 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3824K026

Order No.: 45D5913

EAN: 4099879853097

MPN:

B32933A3824K026

B32933A3824K26

Image may differ

Key Specification:

Capacity 820 nF

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2257 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

980.56 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32933A3824K026, EPCOS

Metallized polyester film capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

Technical specifications

Filter	Property	Value
	Width	12 mm
	Rated voltage (AC)	305 V
	Number of pins	2
	Length	26.5 mm
	Design	radial
	Dielectric material	PET
	max. operating temperature	105 °C
	Interference suppression class	X2
	min. operating temperature	-40 °C
	Height	22 mm
	Capacity	820 nF
	Tolerance	±10 %
	Grid	22.5 mm
