B32933A3684K189 | TDK (EPCOS)

Name: MKT suppression capacitor, 680 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3684K189
Brand: TDK (EPCOS)
SKU: 70D6920
Availability: InStock

MKT suppression capacitor, 680 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3684K189

Order No.: 70D6920

EAN: 4099879862952

MPN:

B32933A3684K189

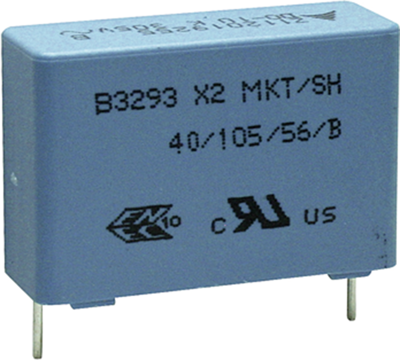

Image may differ

Key Specification:

Capacity 680 nF

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.0353 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,656.48 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32933A3684K189, EPCOS

EMI suppression capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

Technical specifications

Filter	Property	Value
	Grid	22.5 mm
	Height	16.5 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Rated voltage (AC)	305 V
	Tolerance	±10 %
	Width	10.5 mm
	Interference suppression class	X2
	Capacity	680 nF
	Design	radial
	Length	26.5 mm
	Number of pins	2
	Dielectric material	PET
