B32933A3564M000 | TDK (EPCOS)

Name: MKT suppression capacitor, 560 nF, ±20 %, 305 V (AC), PET, 22.5 mm, B32933A3564M000
Brand: TDK (EPCOS)
SKU: 70D6916
Availability: InStock

MKT suppression capacitor, 560 nF, ±20 %, 305 V (AC), PET, 22.5 mm, B32933A3564M000

Order No.: 70D6916

EAN: 4099879862938

MPN:

B32933A3564M000

B32933A3564M

Image may differ

Key Specification:

Capacity 560 nF

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.7497 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,619.35 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

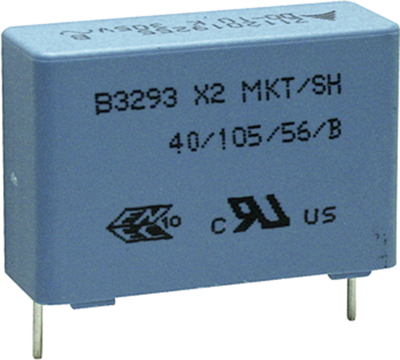

Suppression capacitor, type TDK/Epcos B3293.

As X2 capacitor (heavy duty). For series circuits, electronic power meters, or capacitive power supplies

With 22.5 mm grid, type B32933.

Technical specifications

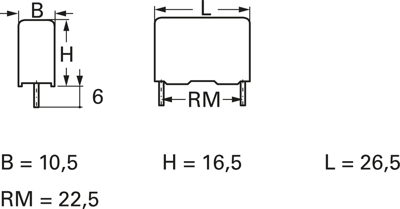

Filter	Property	Value
	Grid	22.5 mm
	Height	16.5 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Rated voltage (AC)	305 V
	Tolerance	±20 %
	Width	10.5 mm
	Interference suppression class	X2
	Capacity	560 nF
	Design	radial
	Length	26.5 mm
	Number of pins	2
	Dielectric material	PET
