B32933A3414K000 | TDK (EPCOS)

Name: MKT suppression capacitor, 410 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3414K000
Brand: TDK (EPCOS)
SKU: 53D5210
Availability: InStock

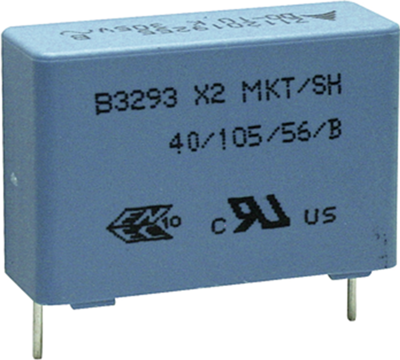

MKT suppression capacitor, 410 nF, ±10 %, 305 V (AC), PET, 22.5 mm, B32933A3414K000

Order No.: 53D5210

EAN: 4099879861443

MPN:

B32933A3414K000

Image may differ

Key Specification:

Capacity 410 nF

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.7378 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

1,505.11 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32933A3414K000, EPCOS

Metallized polyester film capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

Technical specifications

Filter	Property	Value
	Number of pins	2
	Tolerance	±10 %
	Capacity	410 nF
	Grid	22.5 mm
	Rated voltage (AC)	305 V
	max. operating temperature	105 °C
	min. operating temperature	-40 °C
	Design	radial
	Interference suppression class	X2
	Length	26.5 mm
	Dielectric material	PET
