B32933A3155M000 | TDK (EPCOS)

Name: MKT suppression capacitor, 1.5 µF, ±20 %, 305 V (AC), PET, 22.5 mm, B32933A3155M000
Brand: TDK (EPCOS)
SKU: 70D6928
Availability: InStock

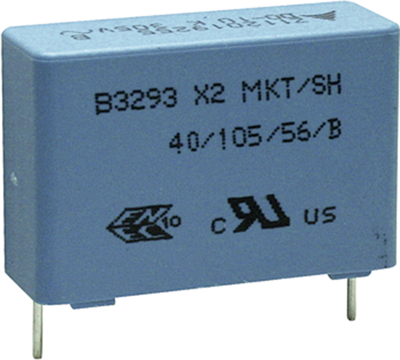

MKT suppression capacitor, 1.5 µF, ±20 %, 305 V (AC), PET, 22.5 mm, B32933A3155M000

Order No.: 70D6928

EAN: 4099879862976

MPN:

B32933A3155M000

B32933A3155M

Image may differ

Key Specification:

Capacity 1.5 µF

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.5946 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,658.38 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32933A3155M000, EPCOS

EMI suppression capacitor (MKT)

Features

High stability of capacitance value
X2 safety approval
RoHS-compatible

Applications

For connection in series with the mains
For severe ambient conditions
Capacitive power supply applications
Energy meters

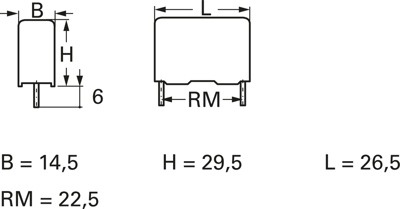

Technical specifications

Filter	Property	Value
	Grid	22.5 mm
	Height	29.5 mm
	min. operating temperature	-40 °C
	max. operating temperature	105 °C
	Rated voltage (AC)	305 V
	Tolerance	±20 %
	Width	14.5 mm
	Interference suppression class	X2
	Capacity	1.5 µF
	Design	radial
	Length	26.5 mm
	Number of pins	2
	Dielectric material	PET
