B32932A3224M000 | TDK (EPCOS)

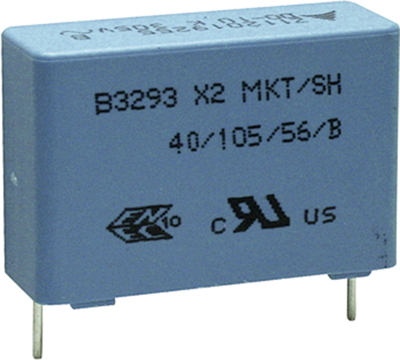

Name: MKT suppression capacitor, 220 nF, ±20 %, 305 V (AC), PET, 15 mm, B32932A3224M000
Brand: TDK (EPCOS)
SKU: 70D6908
Availability: InStock

MKT suppression capacitor, 220 nF, ±20 %, 305 V (AC), PET, 15 mm, B32932A3224M000

Order No.: 70D6908

EAN: 4099879862891

MPN:

B32932A3224M000

B32932A3224M

Image may differ

Key Specification:

Capacity 220 nF

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PET

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4641 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

928.20 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Suppression capacitor, type TDK/Epcos B3293.

As X2 capacitor (heavy duty). For series circuits, electronic power meters, or capacitive power supplies

With 15 mm grid, type B32932.

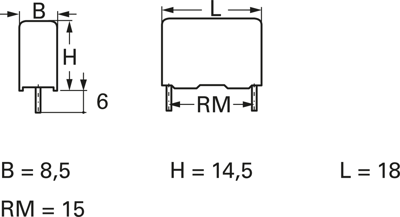

Technical specifications

Filter	Property	Value
	Width	8.5 mm
	Number of pins	2
	Tolerance	±20 %
	Capacity	220 nF
	Grid	15 mm
	Rated voltage (AC)	305 V
	max. operating temperature	105 °C
	min. operating temperature	-40 °C
	Design	radial
	Interference suppression class	X2
	Height	14.5 mm
	Length	18 mm
	Dielectric material	PET
