B32924D3335K003 | TDK (EPCOS)

Name: MKP suppression capacitor, 3.3 µF, ±10 %, 630 V (DC), PP, 27.5 mm, B32924D3335K003
Brand: TDK (EPCOS)
SKU: 45D5785
Availability: InStock

MKP suppression capacitor, 3.3 µF, ±10 %, 630 V (DC), PP, 27.5 mm, B32924D3335K003

Order No.: 45D5785

EAN: 4099879852281

MPN:

B32924D3335K003

B32924D3335K3

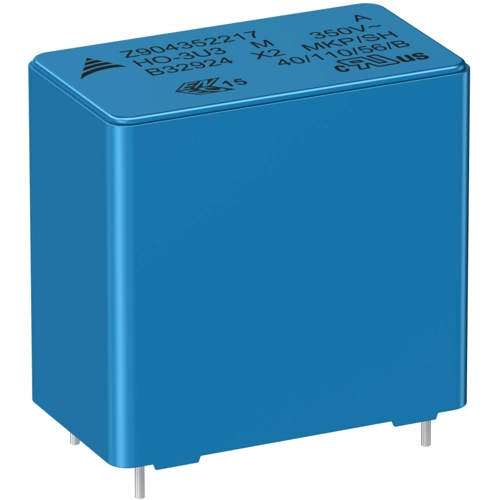

B32924D3335K003 TDK (EPCOS) Film Capacitors Image 2

Image may differ

Key Specification:

Capacity 3.3 µF

Rated voltage (DC) 630 V

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.4518 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

1,277.58 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32924D3335K003, EPCOS

EMI suppression capacitor (MKP)

Features

Very small dimensions
Self-healing properties
Halogen-free
RoHS-compatible

Applications

X1 class for interference suppression
Across the line

Technical specifications

Filter	Property	Value
	Capacity	3.3 µF
	Rated voltage (DC)	630 V
	Rated voltage (AC)	305 V
	Tolerance	±10 %
	Dielectric material	PP
	Design	radial
	Grid	27.5 mm
	Interference suppression class	X2
	Number of pins	2
	Length	31.5 mm
	Width	16 mm
	Height	32 mm
	min. operating temperature	-40 °C
	max. operating temperature	110 °C
