B32924C3225K026 | TDK (EPCOS)

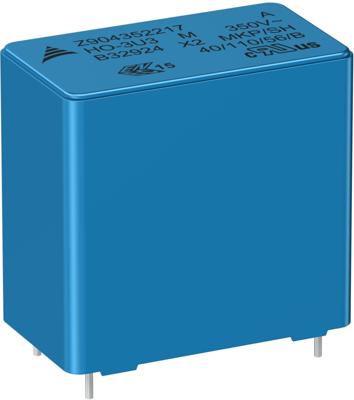

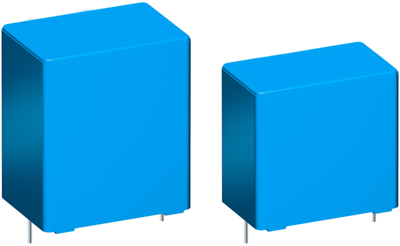

MKP suppression capacitor, 2.2 µF, ±10 %, 630 V (DC), PP, 27.5 mm, B32924C3225K026
Order No.: 45D5758
EAN: 4099879852014
MPN:
B32924C3225K026
B32924C3225K26
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 10 Weeks
Film capacitor, B32924C3225K026, EPCOS
EMI suppression capacitor (MKP)
Features
- Very small dimensions
- Self-healing properties
- Halogen-free
- RoHS-compatible
Applications
- X1 class for interference suppression
- Across the line
Technical specifications
| Capacity | 2.2 µF | |
| Rated voltage (DC) | 630 V | |
| Rated voltage (AC) | 305 V | |
| Tolerance | ±10 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 27.5 mm | |
| Interference suppression class | X2 | |
| Number of pins | 2 | |
| Length | 31.5 mm | |
| Width | 14 mm | |
| Height | 24.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Reel with 150 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
