B32923C3824M000 | TDK (EPCOS)

Name: MKP suppression capacitor, 820 nF, ±20 %, 630 V (DC), PP, 22.5 mm, B32923C3824M000
Brand: TDK (EPCOS)
SKU: 70D6082
Availability: InStock

MKP suppression capacitor, 820 nF, ±20 %, 630 V (DC), PP, 22.5 mm, B32923C3824M000

Order No.: 70D6082

EAN: 4099879862723

MPN:

B32923C3824M000

B32923C3824M

Image may differ

Key Specification:

Capacity 820 nF

Rated voltage (DC) 630 V

Rated voltage (AC) 305 V

Tolerance ±20 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4403 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

951.05 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Suppression capacitor, type TDK/Epcos B32921/..922/..923/..924/..926.

X2 capacitor, self-sealing, with polypropylene (MKP) dielectric

Technical specifications

Filter	Property	Value
	Capacity	820 nF
	Rated voltage (DC)	630 V
	Rated voltage (AC)	305 V
	Tolerance	±20 %
	Dielectric material	PP
	Design	radial
	Grid	22.5 mm
	Interference suppression class	X2
	Number of pins	2

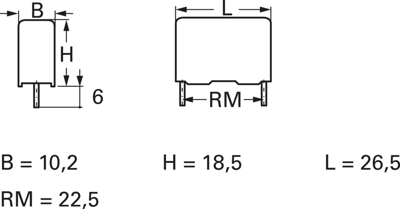

	Length	26.5 mm
	Width	10.5 mm
	Height	18.5 mm
	min. operating temperature	-40 °C
	max. operating temperature	110 °C
