B32922C3223K189 | TDK (EPCOS)

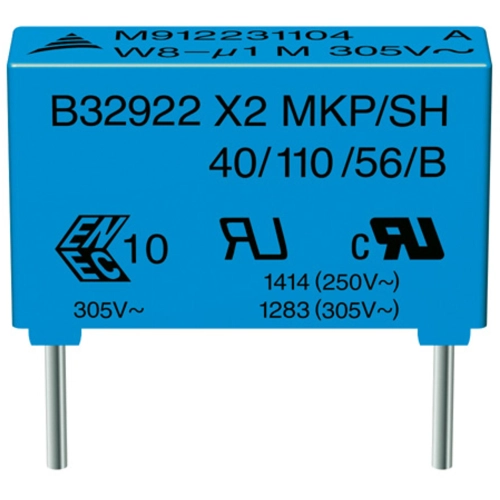

Name: MKP suppression capacitor, 22 nF, ±10 %, 630 V (DC), PP, 15 mm, B32922C3223K189
Brand: TDK (EPCOS)
SKU: 46D0729
Availability: InStock

MKP suppression capacitor, 22 nF, ±10 %, 630 V (DC), PP, 15 mm, B32922C3223K189

Order No.: 46D0729

EAN: 4099879854643

MPN:

B32922C3223K189

Image may differ

Key Specification:

Capacity 22 nF

Rated voltage (DC) 630 V

Rated voltage (AC) 305 V

Tolerance ±10 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1987 € *

Standard delivery time from the manufacturer is: 10 Weeks

Total Price:

1,033.40 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32922C3223K189, EPCOS

EMI suppression capacitor (MKP)

Features

Very small dimensions
Self-healing properties
Halogen-free
RoHS-compatible

Applications

X1 class for interference suppression
Across the line

Technical specifications

Filter	Property	Value
	Grid	15 mm
	Interference suppression class	X2
	Rated voltage (DC)	630 V
	max. operating temperature	110 °C
	Number of pins	2
	Rated voltage (AC)	305 V
	Tolerance	±10 %
	Capacity	22 nF
	Dielectric material	PP
	min. operating temperature	-40 °C
	Design	radial
