B32921C3223K000 | TDK (EPCOS)
MKP suppression capacitor, 22 nF, ±10 %, 630 V (DC), PP, 10 mm, B32921C3223K000
Order No.: 45D5514
EAN: 4099879849748
MPN:
B32921C3223K000
B32921C3223K
Unit Price (€ / pc.)
0.2190 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

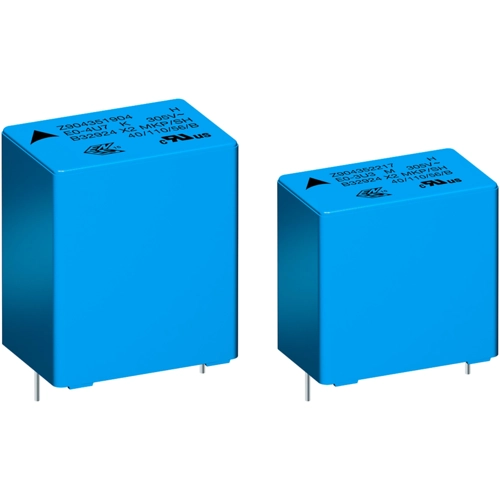

Film capacitor, B32921C3223K000, EPCOS
EMI suppression capacitor (MKP)
Features
- Very small dimensions
- Self-healing properties
- Halogen-free
- RoHS-compatible
Applications
- X1 class for interference suppression
- Across the line
Technical specifications
| Capacity | 22 nF | |
| Rated voltage (DC) | 630 V | |
| Rated voltage (AC) | 305 V | |
| Tolerance | ±10 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 10 mm | |
| Interference suppression class | X2 | |
| Number of pins | 2 | |
| Length | 13 mm | |
| Width | 4 mm | |
| Height | 9 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
