B32916A5105M026 | TDK (EPCOS)

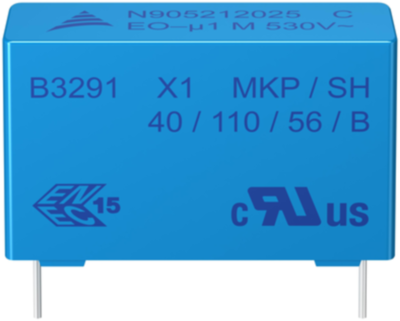

MKP suppression capacitor, 1 µF, ±20 %, 760 V (DC), PP, 37.5 mm, B32916A5105M026
Order No.: 76D9935
EAN: 4099879864079
MPN:
B32916A5105M026
B32916A5105M26
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Film capacitor, B32916A5105M026, EPCOS
EMI suppression capacitor (MKP)
Features
- Small dimensions
- Good self-healing properties
- High voltage capability
- Halogen-free
- RoHS-compatible
Applications
- X1 class for interference suppression
- Across the line
Technical specifications
| Capacity | 1 µF | |
| Rated voltage (DC) | 760 V | |
| Rated voltage (AC) | 530 V | |
| Tolerance | ±20 % | |
| Dielectric material | PP | |
| Design | radial | |
| Grid | 37.5 mm | |
| Interference suppression class | X1 | |
| Number of pins | 2 | |
| Length | 42 mm | |
| Width | 14 mm | |
| Height | 25 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 80 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
