B32916A3335M026 | TDK (EPCOS)

Name: MKP suppression capacitor, 3.3 µF, ±20 %, 760 V (DC), PP, 37.5 mm, B32916A3335M026
Brand: TDK (EPCOS)
SKU: 45D5486
Availability: OutOfStock

MKP suppression capacitor, 3.3 µF, ±20 %, 760 V (DC), PP, 37.5 mm, B32916A3335M026

Order No.: 45D5486

EAN: 4099879849601

MPN:

B32916A3335M026

B32916A3335M26

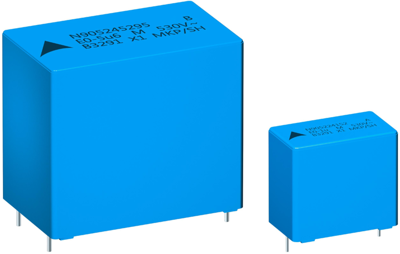

Image may differ

Key Specification:

Capacity 3.3 µF

Rated voltage (DC) 760 V

Rated voltage (AC) 330 V

Tolerance ±20 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.1765 € *

Standard delivery time from the manufacturer is: 18 Weeks

Total Price:

1,242.36 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32916A3335M026, EPCOS

EMI suppression capacitor (MKP)

Features

Very small dimensions
Good self-healing properties
High voltage capability
Halogen-free
RoHS-compatible

Applications

X1 class for interference suppression
Across the line

Technical specifications

Filter	Property	Value
	Capacity	3.3 µF
	Rated voltage (DC)	760 V
	Rated voltage (AC)	330 V
	Tolerance	±20 %
	Dielectric material	PP
	Design	radial
	Grid	37.5 mm
	Interference suppression class	X1
	Number of pins	2
	Length	41.5 mm
	Width	18 mm
	Height	32.5 mm
	min. operating temperature	-40 °C
	max. operating temperature	110 °C
