B32778H2186K000 | TDK (EPCOS)

MKP film capacitor, 18 µF, ±10 %, 1.4 kV (DC), PP, 52.5 mm, B32778H2186K000

Order No.: 53D5161
EAN: 4099879861139
MPN:
B32778H2186K000
B32778H2186K000 TDK (EPCOS) Film Capacitors

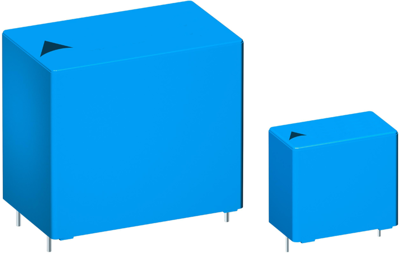

Image may differ
Unit Price (€ / pc.)
11.6382 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,117.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
96 pcs.
11.6382 €

Film capacitor, B32778H2186K000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • For severe ambient conditions
  • High CV product, compact
  • Good self-healing properties
  • Over-voltage capability
  • Low losses with high current capability
  • Long useful life
  • RoHS-compatible

Applications

  • Frequency converters
  • Industrial and high-end power supplies
  • Solar Inverters
Technical specifications
Rated voltage (DC) 1.4 kV
Dielectric material PP
Capacity 18 µF
Grid 52.5 mm
Width 38 mm
Height 57.5 mm
Length 57.5 mm
Design radial
min. operating temperature -40 °C
Tolerance ±10 %
max. operating temperature 105 °C
Number of pins 4
Logistics
Customs tariff number 85321000
Original Packaging Bulk with 24 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
