B32776Z7206K000 | TDK (EPCOS)

MKT film capacitor, 20 µF, ±10 %, 1.1 kV (DC), PP, 37.5 mm, B32776Z7206K000

Order No.: 17D0441
EAN: 4099879813954
MPN:
B32776Z7206K000
B32776Z7206K
B32776Z7206K000 TDK (EPCOS) Film Capacitors

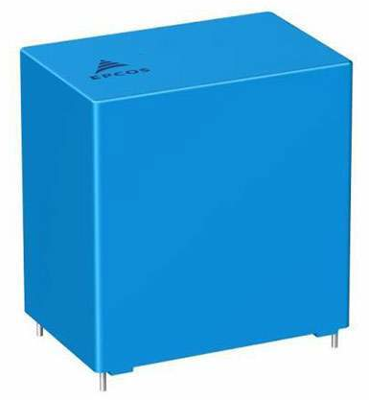

Image may differ
Unit Price (€ / pc.)
7.3066 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,315.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
180 pcs.
7.3066 €

Film capacitor, B32776Z7206K000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • High CV product, compact
  • Good self-healing properties
  • Over-voltage capability
  • Low losses with high current capability
  • Long useful life
  • RoHS-compatible

Applications

  • Frequency converters
  • Industrial and high-end power supplies
  • Solar Inverters
Technical specifications
Rated voltage (DC) 1.1 kV
Dielectric material PP
Capacity 20 µF
Grid 37.5 mm
Width 33 mm
Height 48 mm
Length 42 mm
Design radial
min. operating temperature -40 °C
Tolerance ±10 %
max. operating temperature 105 °C
Number of pins 4
Logistics
Customs tariff number 85321000
Original Packaging Bulk with 45 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
