B32774X1155K000 | TDK (EPCOS)

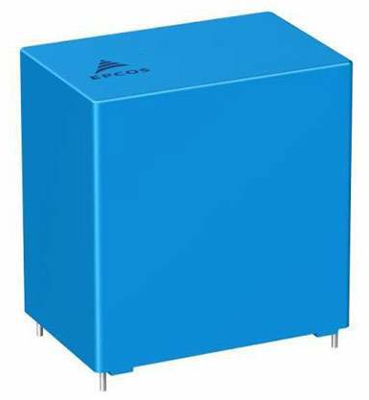

MKP film capacitor, 1.5 µF, ±10 %, 1.2 kV (DC), PP, 27.5 mm, B32774X1155K000

Order No.: 17D0404
EAN: 4099879813824
MPN:
B32774X1155K000
B32774X1155K
B32774X1155K000 TDK (EPCOS) Film Capacitors
Image may differ
Unit Price (€ / pc.)
0.8687 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,824.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
2100 pcs.
0.8687 €

Film capacitor, B32774X1155K000, EPCOS

Metallized polypropylene film capacitor (MKP)

Features

  • High CV product, compact
  • Good self-healing properties
  • Over-voltage capability
  • Low losses with high current capability
  • Long useful life
  • RoHS-compatible

Applications

  • Frequency converters
  • Industrial and high-end power supplies
  • Solar Inverters
Technical specifications
Rated voltage (DC) 1.2 kV
Dielectric material PP
Capacity 1.5 µF
Grid 27.5 mm
Width 12.5 mm
Height 21.5 mm
Length 31.5 mm
Design radial
min. operating temperature -40 °C
Tolerance ±10 %
max. operating temperature 105 °C
Number of pins 2
Logistics
Customs tariff number 85321000
Original Packaging Bulk with 525 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
