B32758G3306J000 | TDK (EPCOS)
MKP film capacitor, 30 µF, ±5 %, 580 V (DC), PP, 52.5 mm, B32758G3306J000
Order No.: 17D0382
EAN: 4099879813701
MPN:
B32758G3306J000
B32758G3306J
Unit Price (€ / pc.)
13.3637 € *
Standard delivery time from the manufacturer is: 6 Weeks

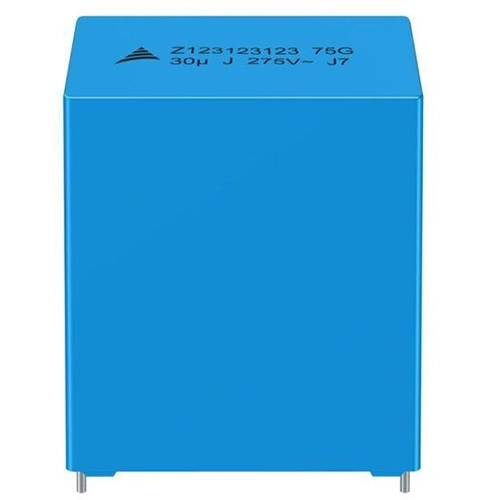

Film capacitor, B32758G3306J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Optimized AC voltage performance
- High ripple current/frequency handling capability
- UL 810 construction
- For PCB mounting
Applications
- Output AC filtering for power converters, UPS, motor drives
Technical specifications
| Rated voltage (DC) | 580 V | |
| Dielectric material | PP | |
| Capacity | 30 µF | |
| Grid | 52.5 mm | |
| Width | 35 mm | |
| Height | 50 mm | |
| Length | 57.5 mm | |
| Rated voltage (AC) | 310 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 105 °C | |
| Number of pins | 4 |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 27 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
