B32758G2506J000 | TDK (EPCOS)
MKP film capacitor, 50 µF, ±5 %, 500 V (DC), PP, 52.5 mm, B32758G2506J000
Order No.: 17D0377
EAN: 4099879813671
MPN:
B32758G2506J000
B32758G2506J
Unit Price (€ / pc.)
14.4823 € *
Standard delivery time from the manufacturer is: 999 Weeks

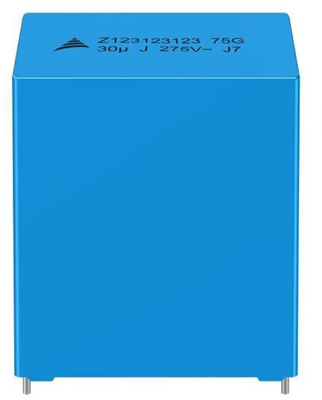

Film capacitor, B32758G2506J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- Optimized AC voltage performance
- High ripple current/frequency handling capability
- UL 810 construction
- For PCB mounting
Applications
- Output AC filtering for power converters, UPS, motor drives
Technical specifications
| Rated voltage (DC) | 500 V | |
| Dielectric material | PP | |
| Capacity | 50 µF | |
| Grid | 52.5 mm | |
| Width | 38 mm | |
| Height | 57.5 mm | |
| Length | 57.5 mm | |
| Rated voltage (AC) | 250 V | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 105 °C | |
| Number of pins | 4 |
Download
Logistics
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 24 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
