B32686S7474K561 | TDK (EPCOS)

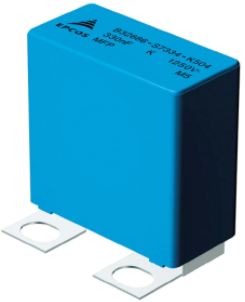

MFP film capacitor, 470 nF, ±10 %, 1.25 kV (DC), PP, 28 mm, B32686S7474K561
Order No.: 45D5144
EAN: 4099879848703
MPN:
B32686S7474K561
Unit Price (€ / pc.)
11.424 € *
Standard delivery time from the manufacturer is: 22 Weeks
Film capacitor, B32686S7474K561, EPCOS
Metallized polypropylene film capacitor (MFP)
Features
- Very high pulse strength
- Highest possible contact reliability
- High current
- RoHS-compatible
Applications
- Snubbering
- Filtering
- IGBT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 30 mm | |
| Rated voltage (AC) | 450 V | |
| Rated voltage (DC) | 1.25 kV | |
| Number of pins | 2 | |
| Length | 42 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Height | 45 mm | |
| Capacity | 470 nF | |
| Tolerance | ±10 % | |
| Grid | 28 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 12 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
