B32686S7224J565 | TDK (EPCOS)

Name: MFP film capacitor, 220 nF, ±5 %, 1.25 kV (DC), PP, 28.5 mm, B32686S7224J565
Brand: TDK (EPCOS)
SKU: 45D5143
Availability: InStock

MFP film capacitor, 220 nF, ±5 %, 1.25 kV (DC), PP, 28.5 mm, B32686S7224J565

Order No.: 45D5143

EAN: 4099879848697

MPN:

B32686S7224J565

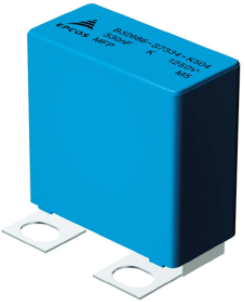

Image may differ

Key Specification:

Capacity 220 nF

Rated voltage (DC) 1.25 kV

Rated voltage (AC) 450 V

Tolerance ±5 %

Dielectric material PP

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.4724 € *

Standard delivery time from the manufacturer is: 22 Weeks

Total Price:

1,212.47 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Film capacitor, B32686S7224J565, EPCOS

Metallized polypropylene film capacitor (MFP)

Features

Very high pulse strength
Highest possible contact reliability
High current
RoHS-compatible

Applications

Snubbering
Filtering
IGBT

Technical specifications

Filter	Property	Value
	Rated voltage (DC)	1.25 kV
	Rated voltage (AC)	450 V
	Tolerance	±5 %
	Design	radial
	Width	18 mm
	Height	32.5 mm
	Dielectric material	PP
	max. operating temperature	110 °C
	min. operating temperature	-55 °C
	Number of pins	2
	Length	42 mm
	Capacity	220 nF
	Grid	28.5 mm
