B32678G6206J000 | TDK (EPCOS)
MKP film capacitor, 20 µF, ±5 %, 630 V (DC), PP, 52.5 mm, B32678G6206J000
Order No.: 45D5026
EAN: 4099879848208
MPN:
B32678G6206J000
B32678G6206J
Unit Price (€ / pc.)
10.2697 € *
Standard delivery time from the manufacturer is: 10 Weeks

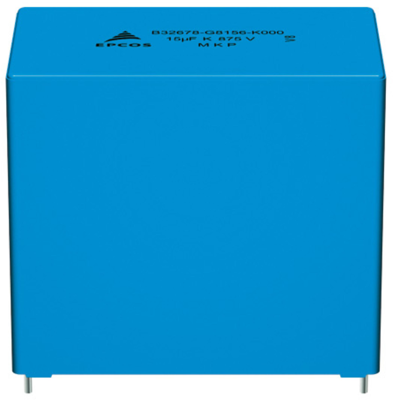

Film capacitor, B32678G6206J000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High CV product, compact
- Good self-healing properties
- Over-voltage capability
- Low losses with high current capability
- High reliability
- Long useful life
Applications
- Frequency converters
- Industrial and high-end power supplies
- Solar inverters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 630 V | |
| Tolerance | ±5 % | |
| Design | radial | |
| Width | 35 mm | |
| Height | 50 mm | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Number of pins | 4 | |
| Length | 57.5 mm | |
| Capacity | 20 µF | |
| Grid | 52.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 27 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
