B32678G4356K000 | TDK (EPCOS)
MKP film capacitor, 35 µF, ±10 %, 450 V (DC), PP, 52.5 mm, B32678G4356K000
Order No.: 37D1442
EAN: 4099879815040
MPN:
B32678G4356K000
B32678G4356K
Unit Price (€ / pc.)
11.662 € *
Standard delivery time from the manufacturer is: 22 Weeks

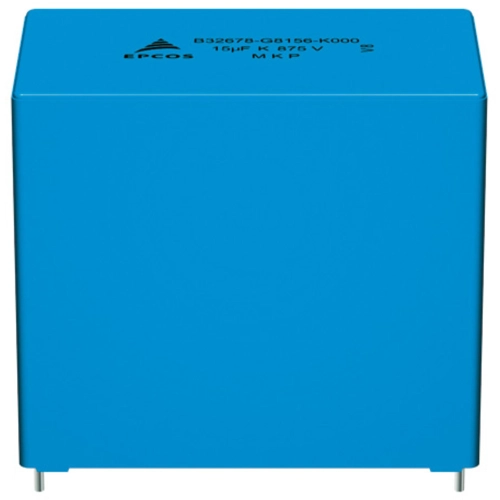

Film capacitor (MKP), type TDK/Epcos B32674/32676/32678.
With 2 or 4 connecting wires
Rated voltage 450 VDC.

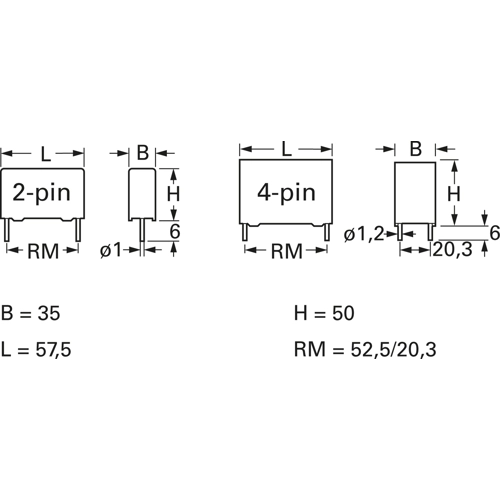

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 52.5 mm | |
| Rated voltage (DC) | 450 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 4 | |
| Tolerance | ±10 % | |
| Length | 57.5 mm | |
| Capacity | 35 µF | |
| Dielectric material | PP | |
| Height | 50 mm | |
| Width | 35 mm | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Original Packaging | Bulk with 27 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
