B32676G8405K000 | TDK (EPCOS)

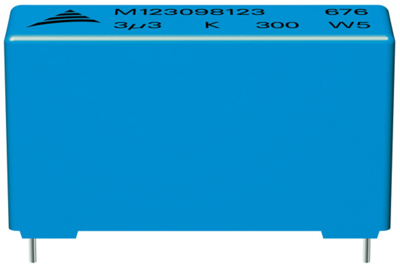

MKP film capacitor, 4 µF, ±10 %, 875 V (DC), PP, 37.5 mm, B32676G8405K000
Order No.: 45D5008
EAN: 4099879848130
MPN:
B32676G8405K000
B32676G8405K
Unit Price (€ / pc.)
4.4387 € *
Standard delivery time from the manufacturer is: 1,009 Weeks
Film capacitor, B32676G8405K000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High CV product, compact
- Good self-healing properties
- Over-voltage capability
- Low losses with high current capability
- High reliability
- Long useful life
Applications
- Frequency converters
- Industrial and high-end power supplies
- Solar inverters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 875 V | |
| Dielectric material | PP | |
| Capacity | 4 µF | |
| Grid | 37.5 mm | |
| Width | 20 mm | |
| Height | 39.5 mm | |
| Length | 42 mm | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±10 % | |
| max. operating temperature | 105 °C | |
| Number of pins | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 75 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
