B32676E8335K000 | TDK (EPCOS)
MKP film capacitor, 3.3 µF, ±10 %, 875 V (DC), PP, 37.5 mm, B32676E8335K000
Unit Price (€ / pc.)
3.2011 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2,048.70 € *
Price list
Quantity
Price per unit*
640 pcs.
3.2011 €
3200 pcs.
3.0107 €
*incl. VAT plus shipping costs
Subject to prior sale

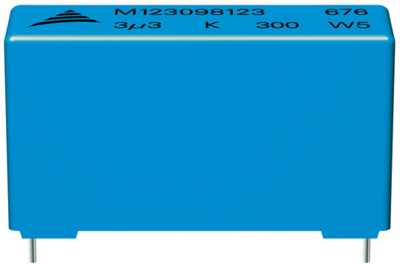

Film capacitor (MKP), type TDK/Epcos B32674/32676/32678.
With 2 or 4 connecting wires
Rated voltage 875 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 37.5 mm | |
| Rated voltage (DC) | 875 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| Tolerance | ±10 % | |
| Length | 42 mm | |
| Capacity | 3.3 µF | |
| Dielectric material | PP | |
| Height | 39.5 mm | |
| Width | 20 mm | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Original Packaging | Bulk with 160 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
