B32676E4475K000 | TDK (EPCOS)
MKP film capacitor, 4.7 µF, ±10 %, 450 V (DC), PP, 37.5 mm, B32676E4475K000
Order No.: 45D4962
EAN: 4099879848055
MPN:
B32676E4475K000
B32676E4475K
Unit Price (€ / pc.)
2.9036 € *
Standard delivery time from the manufacturer is: 10 Weeks

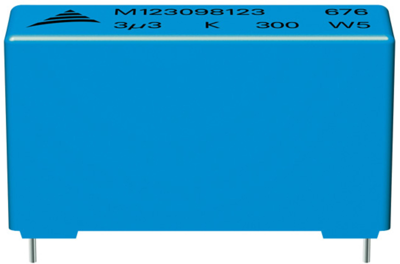

Film capacitor, B32676E4475K000, EPCOS
Metallized polypropylene film capacitor (MKP)
Features
- High CV product, compact
- Good self-healing properties
- Over-voltage capability
- Low losses with high current capability
- High reliability
- Long useful life
Applications
- Frequency converters
- Industrial and high-end power supplies
- Solar inverters
Technical specifications
Filter | Property | Value |
---|---|---|
Rated voltage (DC) | 450 V | |
Dielectric material | PP | |
Capacity | 4.7 µF | |
Grid | 37.5 mm | |
Width | 16 mm | |
Height | 28.5 mm | |
Length | 42 mm | |
Rated voltage (AC) | 275 V | |
Design | radial | |
min. operating temperature | -40 °C | |
Tolerance | ±10 % | |
max. operating temperature | 105 °C | |
Number of pins | 2 |
Download
Logistics
Property | Value |
---|---|
Customs tariff number | 85321000 |
Original Packaging | Bulk with 200 pieces |
Compliance
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
