B32674D8155K000 | TDK (EPCOS)
MKP film capacitor, 1.5 µF, ±10 %, 875 V (DC), PP, 27.5 mm, B32674D8155K000
Order No.: 37D1024
EAN: 4099879814814
MPN:
B32674D8155K000
B32674D8155K
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 12 Weeks
Film capacitor (MKP), type TDK/Epcos B32674/32676/32678.
With 2 or 4 connecting wires
Rated voltage 875 VDC.

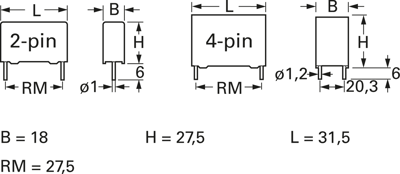

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 18 mm | |
| Rated voltage (DC) | 875 V | |
| Number of pins | 2 | |
| Length | 31.5 mm | |
| Design | radial | |
| Dielectric material | PP | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Height | 27.5 mm | |
| Capacity | 1.5 µF | |
| Tolerance | ±10 % | |
| Grid | 27.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85321000 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
