B32674D6475K000 | TDK (EPCOS)
MKP film capacitor, 4.7 µF, ±10 %, 630 V (DC), PP, 27.5 mm, B32674D6475K000
Unit Price (€ / pc.)
4.4506 € *
Available: 792 pcs.
Total Price:
4.45 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4506 €
10 pcs.
3.9151 €
160 pcs.
3.4391 €
320 pcs.
3.3082 €
1280 pcs.
3.0940 €
*incl. VAT plus shipping costs
Subject to prior sale

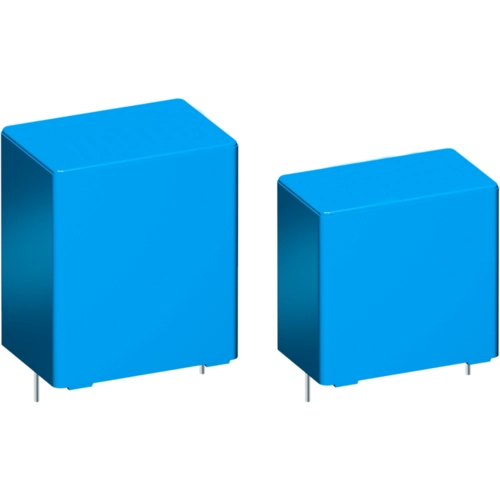

Film capacitor (MKP), type TDK/Epcos B32674/32676/32678.
With 2 or 4 connecting wires
Rated voltage 630 VDC.

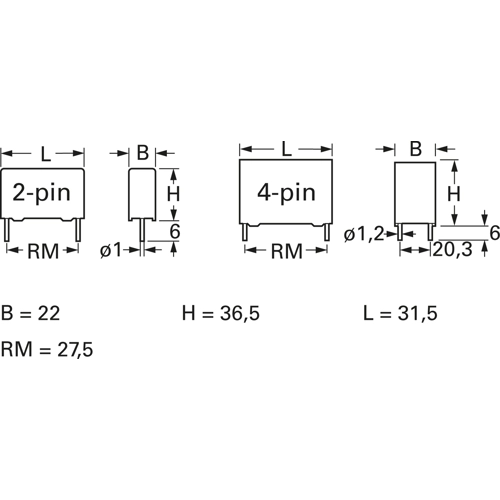

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 27.5 mm | |
| Rated voltage (DC) | 630 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| Tolerance | ±10 % | |
| Length | 31.5 mm | |
| Capacity | 4.7 µF | |
| Dielectric material | PP | |
| Height | 36.5 mm | |
| Width | 22 mm | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Original Packaging | Bulk with 160 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
