B32674D3685K000 | TDK (EPCOS)
MKP film capacitor, 6.8 µF, ±10 %, 300 V (DC), PP, 27.5 mm, B32674D3685K000
Order No.: 37D1004
EAN: 4099879814746
MPN:
B32674D3685K000
B32674D3685K
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 12 Weeks
Film capacitor (MKP), type TDK/Epcos B32674/32676/32678.
With 2 or 4 connecting wires
Rated voltage 300 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 27.5 mm | |
| Rated voltage (DC) | 300 V | |
| max. operating temperature | 105 °C | |
| Number of pins | 2 | |
| Tolerance | ±10 % | |

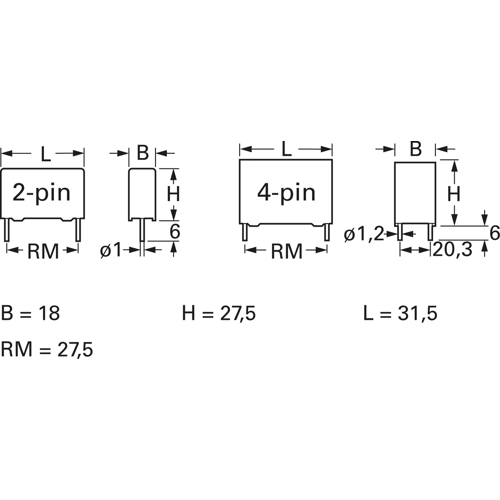

| Length | 31.5 mm | |
| Capacity | 6.8 µF | |
| Dielectric material | PP | |
| Height | 27.5 mm | |
| Width | 18 mm | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Original Packaging | Bulk with 200 pieces |
| Customs tariff number | 85321000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
